H7000D

TR7 H7000D

The TR7 H7000D is the datacenter line of the H7000 family: a 1U appliance powered by Intel Xeon Scalable class processors with 48 cores and above, Intel QuickAssist hardware crypto acceleration and dual hot-swappable power supplies. Purpose-built for high-density data center deployments that demand maximum throughput, connection capacity and 100G connectivity in a single rack unit.

Competitive Advantage

The H7000D series delivers datacenter-class performance — up to 160 Gbps, 300 million concurrent connections and 100G QSFP28 connectivity — in 1U at a price point where competitors typically require 2U chassis or premium licensing tiers. Organizations consolidate rack space, power and cost without sacrificing throughput or SSL performance.

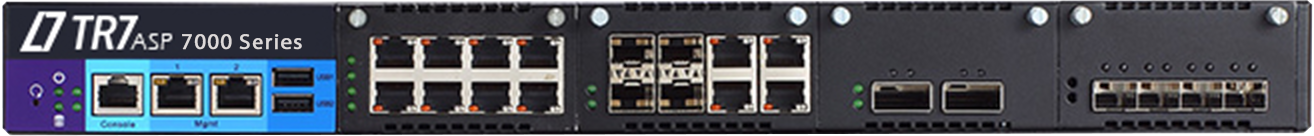

TR7 H7000D

The product image is representative: the H7000D ships on more than one hardware platform and the front-panel layout varies with the module selection. Performance figures are identical on either platform.

TR7 Bandwidth Advantage

Unlike competitors who count both incoming and outgoing traffic against your bandwidth limit, TR7 only counts traffic actively served by your virtual services. Traffic forwarded to backend servers, blocked by firewalls, or routed elsewhere isn't counted—effectively doubling your allowed throughput compared to other vendors.

Flexible Clustering Options

Without the Hidden Premiums

Our virtual appliances support both Active-Active and Active-Passive clustering, giving you full control over your redundancy strategy.

✓
When you choose a clustering license, we include a second instance — without inflating the cost.
Unlike traditional models that only offer Active-Active configurations and price the secondary node nearly as high as the first.
✓
We also offer a cost-effective Active-Passive option designed for high availability without unnecessary overhead.

With us, you're not paying twice to stay online.

TR7 H7000D Series Available Models

TR7 H7100D

100 Gbps
L7 Requests/sec3,200,000
SSL Connections/sec100,000

TR7 H7120D

120 Gbps
L7 Requests/sec3,500,000
SSL Connections/sec120,000

TR7 H7140D

140 Gbps
L7 Requests/sec4,000,000
SSL Connections/sec140,000

TR7 H7160D

160 Gbps
L7 Requests/sec4,500,000
SSL Connections/sec150,000

TR7 H7000D Series Technical Specifications

7100D

TR7 H7100D TR7 H7000D Series Technical Specifications

The H7100D is the entry point to the datacenter line: 100 Gbps of L4 capacity with dual-processor headroom, 150 million concurrent connections and full 100G connectivity, for data centers standardizing on 1U high-density building blocks.

Performance Metrics

L4 Throughput (max)
100 Gbps
L7 Throughput
80 Gbps
Layer 7 req/sec
3,200,000
L4 Connections/sec
3,000,000
SSL Throughput
60 Gbps
SSL Connections/sec (RSA 2K)
100,000
SSL Connections/sec (ECC)
80,000
Max Concurrent L4 Connections
150M
Memory
192 GB

Performance values in this datasheet represent the maximum achievable under optimal conditions and may vary depending on configuration and environment.

Hardware Specifications

Processor
Intel® Xeon® Scalable class
48 cores and above
Storage
2x1 TB SSD (RAID) or 1x2 TB SSD
Network Interfaces
Dedicated RJ45 management port (IPMI 2.0 / Redfish), RJ45 console, USB
Expandability
4 network module slots — data interfaces are provided from here

The hardware specifications represent maximum configurations. Actual configurations may vary based on availability and customer requirements to ensure optimal performance.

Physical Characteristics

Form Factor
1U
Dimensions
1U · 438 mm wide · depth 650 mm or less
Weight
19 kg
Power Supply
1+1 redundant, replaceable while running · 100-240 VAC 50/60 Hz · max. 850 W draw
Operating Temperature
0°C to +40°C
Rack Mounting
19-inch EIA-310-D Type A rack compatible
Power Inlet
2 x IEC-320 C14

Available Network Modules

Expand your network connectivity with these compatible network modules:

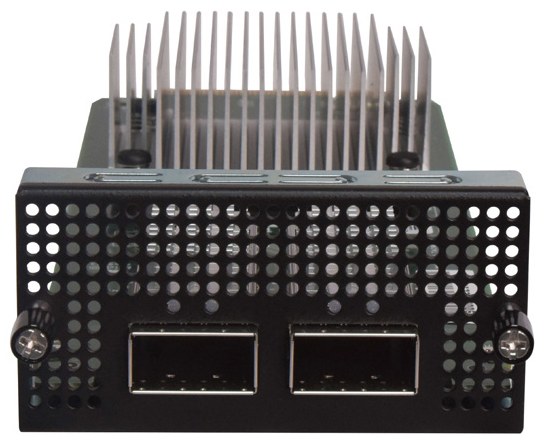

TR-NM-7000-Q10260
(Intel® E810-CAM2) 2 x 100 GbE QSFP28
TR-NM-7000-Q10260
View Module
TR-NM-7000-Q10259
(Intel® E810-CAM1) 1 x 100 GbE QSFP28
TR-NM-7000-Q10259
View Module

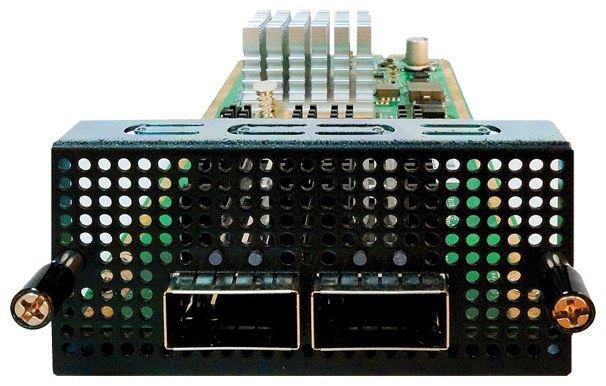

TR-NM-7000-Q40233
(Intel® XL710) 2 x 40 GbE QSFP+
TR-NM-7000-Q40233
View Module

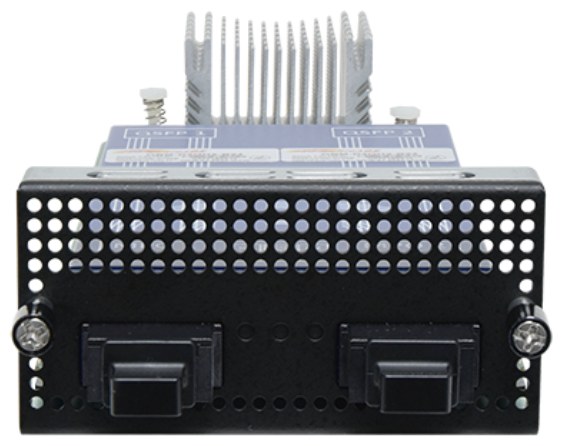

TR-NM-7000-Q40232
(Intel® XL710-BM2) 2 x 40 GbE QSFP+, fiber LAN bypass
TR-NM-7000-Q40232
View Module

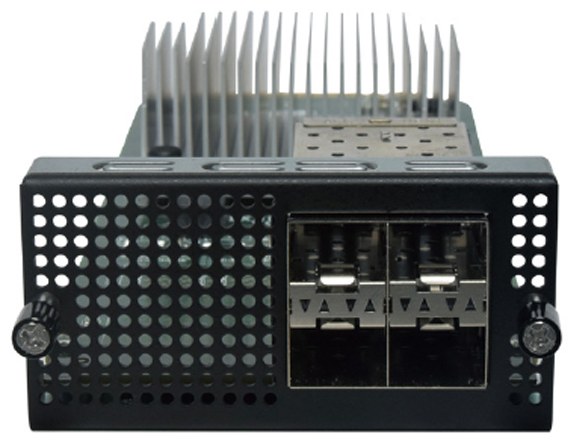

TR-NM-7000-Q25233
(Intel® E810-CAM1) 4 x 25/10 GbE SFP28
TR-NM-7000-Q25233
View Module

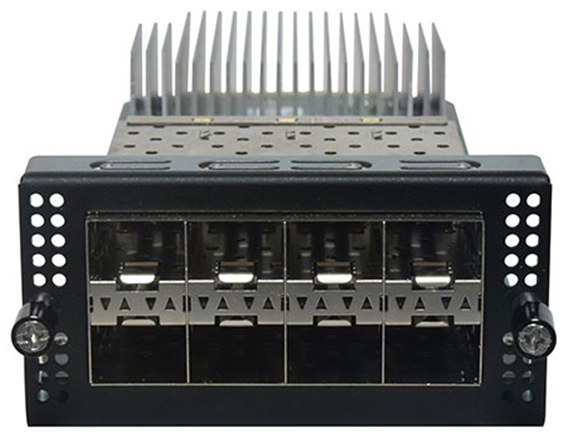

TR-NM-7000-Q10802
(Intel® E810-CAM2) 8 x 10 GbE SFP28
TR-NM-7000-Q10802
View Module

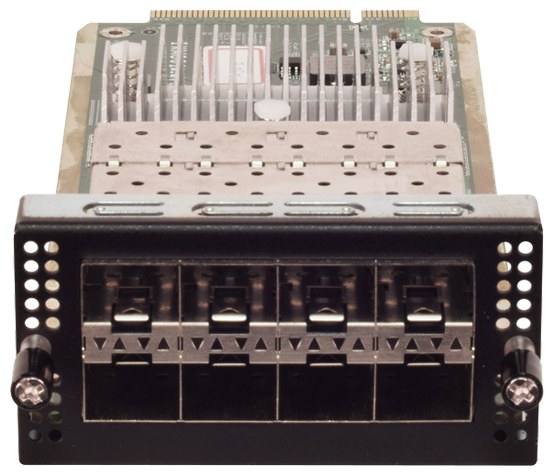

TR-NM-7000-Q10803
(Intel® XL710-AM1) 8 x 10 GbE SFP+
TR-NM-7000-Q10803
View Module

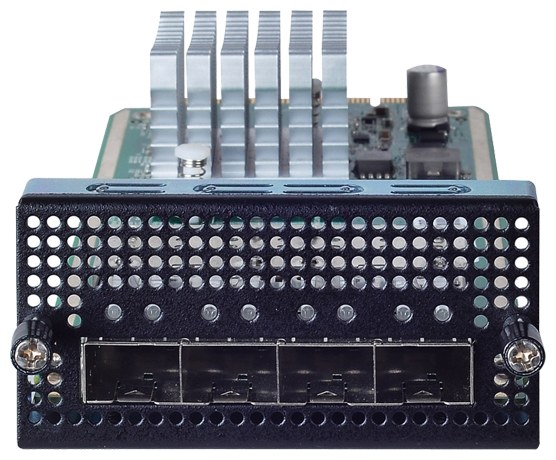

TR-NM-7000-Q10428
(Intel® XL710) 4 x 10 GbE SFP+
TR-NM-7000-Q10428
View Module

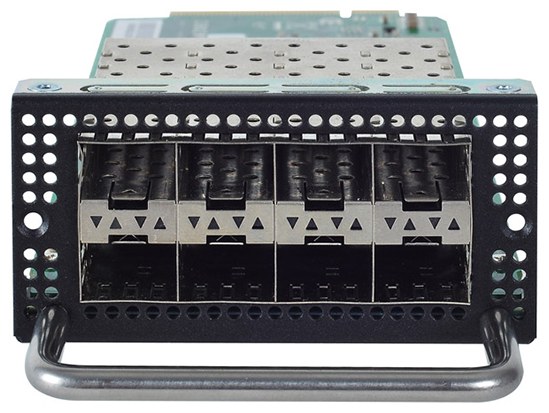

TR-NM-7000-Q14424
(Intel® I350-AM4) 8 x SFP
TR-NM-7000-Q14424
View Module

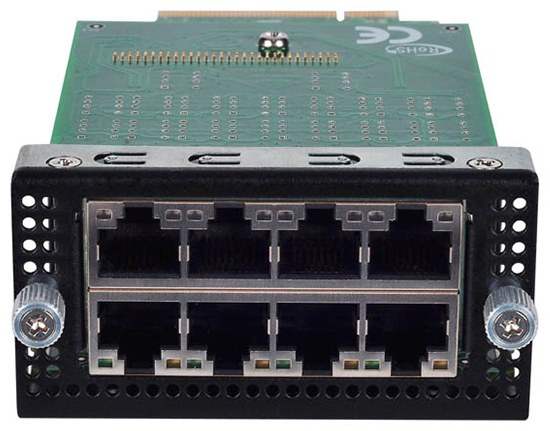

TR-NM-7000-Q18067
(Intel® i350) 8 x GbE RJ-45, 4-pair LAN bypass
TR-NM-7000-Q18067
View Module

Module images are representative. Ordering is by part number: the part number, the controller and the port configuration are binding, the photograph is not.

Compatible Transceiver Modules

Enhance connectivity with these compatible transceiver modules:

Module CodeDescription
TR-SFP-C1000BASE-T SFP Transceiver Module (Copper, 100m, RJ-45)
TR-SFP-SX-M8501000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m)
TR-SFP-LX-M13101000BASE-LX/LH SFP Transceiver Module (MMF, 1310nm, 2km)
TR-SFP-LX-MS13101000BASE-LX/LH SFP Transceiver Module (MMF/SMF, 1310nm, 550m/10km)
TR-SFP-LX-S13101000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 20km)
TR-10G-SR-M85010GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m)
TR-10G-LR-S131010GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km)
TR-10G-T10GBASE-T SFP+ Transceiver Module (Copper, 30m, RJ-45)
TR-25G-SR-M85025GBASE-SR SFP28 Optical Transceiver Module (850nm, 100m)
TR-25G-LR-S131025GBASE-LR SFP28 Optical Transceiver Module (SMF, 1310nm, 10km)
TR-40G-SR4-M85040GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m)
TR-40G-LR4-S131040GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km)
TR-100G-SR4-M850100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m)
TR-100G-LR4-S1310100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km)
TR-FO-MPO12-OM4-xxMPO-12 OM4 multimode trunk cable for 100 GbE QSFP28 SR4 and 40 GbE QSFP+ SR4 (xx = 1, 3, 5, 10, 15 m)
TR-FO-LC-OM4-xxLC duplex OM4 multimode patch cable for 1, 10 and 25 GbE SX/SR optics (xx = 1, 3, 5, 10, 15 m)
TR-FO-LC-OS2-xxLC duplex OS2 single-mode patch cable for 1 to 100 GbE LX/LR/LR4 optics (xx = 3, 5, 10, 20, 30 m)

Security and Compliance

TPM Module
2.0
LAN Bypass
depends on LAN modules
Compliance
CE/FCC Class A, UL, RoHS

TR7 H7000D Series Advantages

See how our solutions compare to leading alternatives in the market

16 x 10G SFP28 + 4 x 100G QSFP28 in default configuration, plus dedicated management port
vs
100G connectivity usually reserved for higher-tier chassis or sold as paid expansion
Network Interfaces
Up to 160 Gbps L4 / 140 Gbps L7 in a single rack unit
vs
Comparable throughput typically requires 2U platforms at significantly higher cost
Maximum Throughput
Up to 90 Gbps SSL throughput and 150,000 SSL CPS (RSA 2K) with hardware crypto acceleration built in
vs
Dedicated SSL hardware sold separately or gated behind premium licenses
SSL Performance
Up to 300 million concurrent L4 connections with memory sized per model (192-384 GB)
vs
Connection capacity often limited by license tiers, additional cost for full capacity
Connection Capacity
High-density processing, redundant hot-swap PSUs and 6 hot-swap fans in 1U
vs
Equivalent redundancy and performance typically packaged in 2U, doubling rack footprint
Datacenter Density
4 module slots with 1G to 100G options, field-upgradable without chassis replacement
vs
Less flexible upgrade paths, often requiring complete hardware refresh
Expandability
Simplified pricing with more included features, better price-performance ratio
vs
Complex licensing models with add-on fees for advanced features, 25-45% higher 3-year TCO
Total Cost of Ownership
All-inclusive maintenance plans with predictable pricing
vs
Multi-tiered support options with higher costs for comprehensive coverage
Support & Maintenance
Designed for 5+ year deployments with regular software updates
vs
Typically 3-4 year refresh cycles recommended by manufacturers
Service Lifespan
15-minute guaranteed response with 24/7 coverage
vs
Support response times vary by contract level and typically require premium plans for faster assistance.
Support Response
Only real traffic counts — bandwidth that works for you, not against you.
vs
Count both incoming and outgoing traffic against your bandwidth limits, reducing effective capacity by up to 50%.
Bandwidth Measurement
With us, you're not paying twice to stay online.
vs
Secondary appliance nearly as high as the first.
Clustering Options
